Specifications

Manufacturer Stock

 N/A {0}

Brands

 N/A E-Switch®

Manufacturer

 N/A E-Switch�

Series

 N/A TL

Model

 N/A 3305

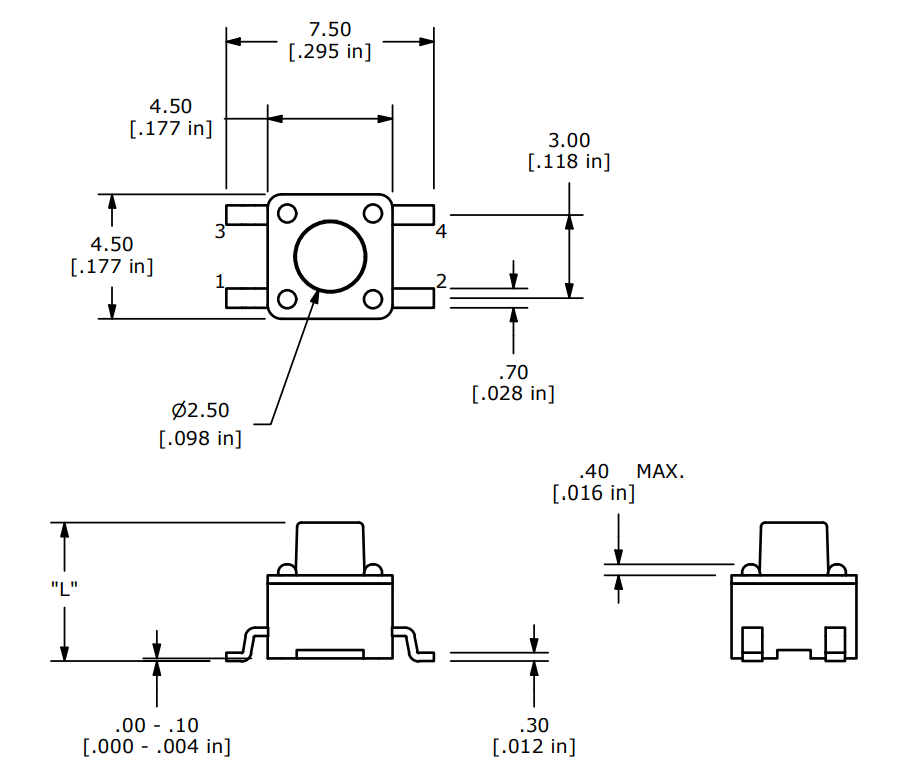

Actuator Dimension L

 N/A 3.8 mm

Actuation Force

 N/A 160 gf

Contact Material

 N/A Silver

Termination

 N/A Gullwing

Current Rating at 12 Volts (V) Direct Current (DC) Voltage

 N/A 50 mA

Electrical Life

 N/A 500000 cycles

Maximum Contact Resistance

 N/A 100 mΩ

Minimum Insulation Resistance at 100 Volts (V) Direct Current (DC) Voltage

 N/A 100 MΩ

Minimum Dielectric Strength Alternating Current (AC) Voltage for 1 Minute

 N/A 250 V

Operating Temperature Range

 N/A -20 to 70 ºC

Storage Temperature Range

 N/A -30 to 80 ºC

Travel

 N/A 0.20 mm

Contact Arrangement

 N/A Normally Open Single Pole, Single Throw (SPST)

Applications

Applications

 N/A Wearable Technology
Computer Peripherals
Consumer Electronics
Instrumentation
Telecommunication
Medical Equipment

Features and Benefits

Features and Benefits

 N/A
  • Ultra-miniature 4.5 x 4.5mm
  • Multiple actuator options
  • Surface mount
  • Multiple operating force options

Note

Note

 N/A Specifications subject to change without notice.
