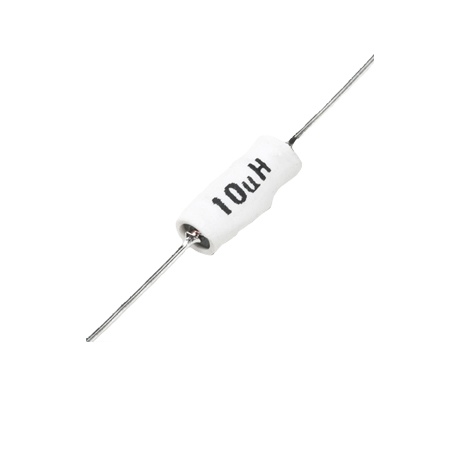

Power Inductor Thru Hole
Unit of Measure

Specifications

Manufacturer Stock

 N/A {0}

Brands

 N/A Gowanda

Manufacturer

 N/A Gowanda

Series

 N/A GA5

Core Type

 N/A Ferrite

Nominal Inductance at 1 Kilohertz (kHz)

 N/A 10 µH

Minimum Superconducting Radio Frequency (SRF)

 N/A 25 MHz

Maximum Direct Current Resistance (DCR)

 N/A 0.095 Ω

Saturation Direct Current (DC)

 N/A 970 A

Direct Current (DC) Rating

 N/A 1500 mA

Operating Temperature Range

 N/A -55 to +125 ºC

Tolerance (±)

 N/A 10 %

Termination

 N/A Tin-Lead (SnPb)

Industry Standards

 N/A Restriction of Hazardous Substances (RoHS)

Place of Origin

 N/A USA

Maximum Weight

 N/A 0.60 g

Tape and Reel Specification

Maximum Pieces/Reel

 N/A 2500

Pitch Between Parts

 N/A 0.200 in

Tape Width

 N/A 2.062 in

Reel Diameter

 N/A 12 in

Class Type

 N/A 1

Note

Note

 N/A
  • Current Rating is based on a 35 ºC temperature rise at an ambient temperature of 90 ºC
  • Saturation Current is the approximate value that will cause a 5 % drop in inductance
  • Custom designs are available to meet your specific requirements; please contact factory
