A Relative Humidity between 40% and 60% is recommended in ESD-protected work areas to reduce static build up during assembly process.
Unit of Measure

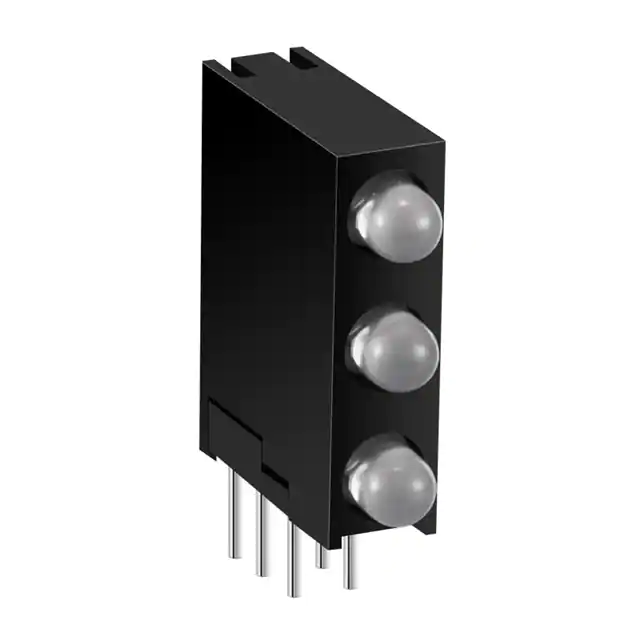

Specifications

Manufacturer Stock

 N/A {0}

Brands

 N/A SunLED

Manufacturer

 N/A SunLED

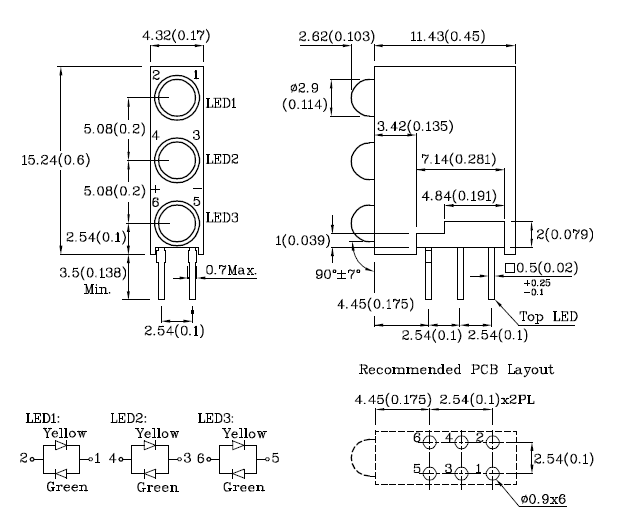

Size

 N/A 3 mm

Tolerance (±)

 N/A 0.25 mm0.01 in

Emitting Color

 N/A Green Yellow

Emitting Material (Yellow)

 N/A Gallium Arsenide Phosphide (GaAsP) Gallium Phosphide (GaP)

Emitting Material (Green)

 N/A Gallium Phosphide (GaP)

Lens Color

 N/A White Diffused

Minimum Luminous Intensity with CIE127-2007 at IF= 20 Milliampere (mA) Current (Yellow)

 N/A 4 mcd

Minimum Luminous Intensity with CIE127-2007 at IF= 20 Milliampere (mA) Current (Green)

 N/A 6 mcd

Typical Luminous Intensity with CIE127-2007 at IF= 20 Milliampere (mA) Current (Yellow)

 N/A 7 mcd

Typical Luminous Intensity with CIE127-2007 at IF= 20 Milliampere (mA) Current (Green)

 N/A 13 mcd

Note for Luminous Intensity and Wavelength

 N/A Luminous intensity value and wavelength are in accordance with CIE127-2007 standards.

Viewing Angle (2 θ 1/2)

 N/A 60 º

Housing Material

 N/A Type 66 Nylon

Housing Rating

 N/A Underwriter Laboratories (UL) 94V-0

Industry Standards

 N/A Restriction of Hazardous Substances (RoHS) Compliant

Absolute Maximum Ratings (TA = 25 Degree Celsius (ºC) Temperature)

Forward Current (IF) (Yellow)

 N/A 30 mA

Forward Current (IF) (Green)

 N/A 25 mA

Forward Current (Peak) 1/10 Duty Cycle 0.1 Millisecond (ms) Pulse Width (iFS) (Yellow)

 N/A 140 mA

Forward Current (Peak) 1/10 Duty Cycle 0.1 Millisecond (ms) Pulse Width (iFS) (Green)

 N/A 140 mA

Power Dissipation (PD) (Yellow)

 N/A 75 mW

Power Dissipation (PD) (Green)

 N/A 62.5 mW

Operating Temperature (TA)

 N/A -40 ~ +85 ºC

Storage Temperature Range (TSTG)

 N/A -40 ~ +85 ºC

Lead Solder Temperature

 N/A 2 mm Below Package Base: 260 ºC for 3 Seconds
5 mm Below Package Base: 260 ºC for 5 Seconds

Operating Characteristics (TA = 25 Degree Celsius (ºC) Temperature)

Typical Forward Voltage (VF) at IF=20 Milliampere (mA) Current (Yellow)

 N/A 2.1 V

Typical Forward Voltage (VF) at IF=20 Milliampere (mA) Current (Green)

 N/A 2.2 V

Maximum Forward Voltage (VF) at IF=20 Milliampere (mA) Current

 N/A 2.5 V

Typical Wavelength of Peak Emission with CIE127-2007 (λP) at IF=20 Milliampere (mA) Current (Yellow)

 N/A 590 nm

Typical Wavelength of Peak Emission with CIE127-2007 (λP) at IF=20 Milliampere (mA) Current (Green)

 N/A 565 nm

Typical Wavelength of Dominant Emission with CIE127-2007 (λD) at IF=20 Milliampere (mA) Current (Yellow)

 N/A 588 nm

Typical Wavelength of Dominant Emission with CIE127-2007 (λD) at IF=20 Milliampere (mA) Current (Green)

 N/A 568 nm

Typical Spectral Line Full Width at Half-Maximum (Δλ) at IF=20 Milliampere (mA) Current (Yellow)

 N/A 35 nm

Typical Spectral Line Full Width at Half-Maximum (Δλ) at IF=20 Milliampere (mA) Current (Green)

 N/A 30 nm

Typical Capacitance (C) at VF=0 Volt (V) Voltage, f= 1 Megahertz (MHz) Frequency (Yellow)

 N/A 20 pF

Typical Capacitance (C) at VF=0 Volt (V) Voltage, f= 1 Megahertz (MHz) Frequency (Green)

 N/A 15 pF

Features

Features

 N/A
  • Black casing provides superior contrast
  • Reliable & robust
  • Custom color combinations available
  • Lead-Free

Note

Note

 N/A Specifications are subject to change without notice.
