Common Anode, Right Hand Decimal.
Unit of Measure

Specifications

Manufacturer Stock

 N/A {0}

Brands

 N/A SunLED

Manufacturer

 N/A SunLED

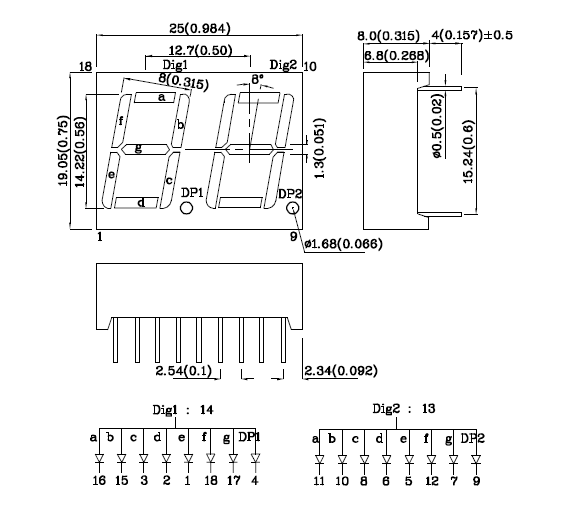

Size

 N/A 14.22 mm0.56 in

Tolerance (±)

 N/A 0.25 mm0.01 in

Lead Solder Temperature (2 Millimeter (mm) Below Package Base)

 N/A 260 ºC for 3 to 5 Seconds

Emitting Color

 N/A Blue

Emitting Material

 N/A Indium Gallium Nitride (InGaN)

Minimum Luminous Intensity at IF= 10 Milliampere (mA) Current

 N/A 5600 ucd

Typical Luminous Intensity at IF= 10 Milliampere (mA) Current

 N/A 14990 ucd

Industry Standards

 N/A Restriction of Hazardous Substances (RoHS) Compliant

Absolute Maximum Ratings (TA = 25 Degree Celsius (ºC) Temperature)

Reverse Voltage (VR)

 N/A 5 V

Forward Current (IF)

 N/A 30 mA

Forward Peak Current 1/10 Duty Cycle 0.1 Millisecond (ms) Pulse Width (iFS)

 N/A 150 mA

Power Dissipation (PD)

 N/A 120 mW

Operating Temperature (TA)

 N/A -40 ~ +85 ºC

Storage Temperature Range (TSTG)

 N/A -40 ~ +85 ºC

Electrostatic Discharge Threshold (HBM)

 N/A 250 V

Operating Characteristics (TA = 25 Degree Celsius (ºC) Temperature)

Typical Forward Voltage (VF) at IF=10 Milliampere (mA) Current

 N/A 3 V

Maximum Forward Voltage (VF) at IF=10 Milliampere (mA) Current

 N/A 4 V

Maximum Reverse Current (IR) at VR=5 Volt (V) Voltage

 N/A 50 µA

Typical Wavelength of Peak Emission (λP) at IF=10 Milliampere (mA) Current

 N/A 468 nm

Typical Wavelength of Dominant Emission (λD) at IF=10 Milliampere (mA) Current

 N/A 470 nm

Typical Spectral Line Full Width at Half-Maximum (Δλ) at IF=10 Milliampere (mA) Current

 N/A 25 nm

Typical Capacitance (C) at VF=0 Volt (V) Voltage, f= 1 Megahertz (MHz) Frequency

 N/A 100 pF

Features

Features

 N/A
  • Low power consumption
  • Robust package
  • I.C. Compatible
  • Standard Configuration: Gray face with white segments
  • Optional black face provides superior color contrast
  • Lead-Free

Note

Note

 N/A Specifications are subject to change without notice.
