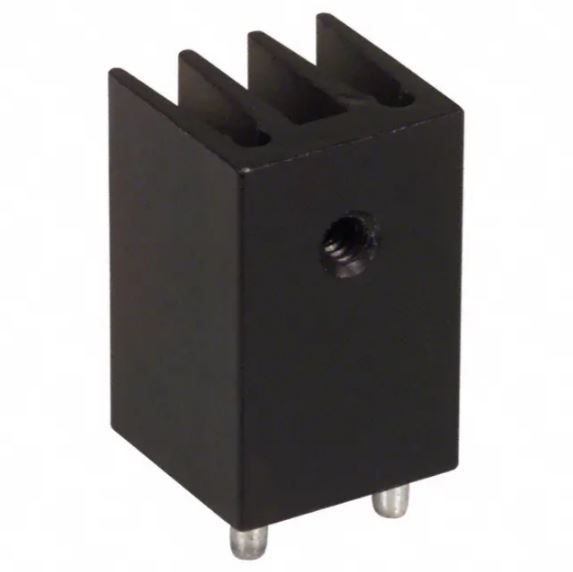

Extruded 5810 is a series of rectangular bi-directional board level heat sinks designed to cool TO-218, TO-220, and TO-220-single gauge devices.
Unit of Measure

Specifications

Manufacturer Stock

 N/A {0}

Brands

 N/A Aavid Thermalloy

Manufacturer

 N/A Aavid�, Thermal Division of Boyd

Industry Standards

 N/A Restriction of Hazardous Substances (RoHS) Compliant

Ordering Information

Device Type

 N/A TO‐220 TO‐220‐Single Gauge

Properties and Details

Width

 N/A 16.26 mm

Length

 N/A 16.26 mm

Height

 N/A 25.40 mm

Mounting Direction

 N/A Vertical

Material

 N/A Aluminum

Finish

 N/A Black Anodize

Device Attachment Options

 N/A Requires Mounting Kit

Mechanical and Performance

Dimension L

 N/A 18.29 mm

Dimension X

 N/A 5.16 mm0.203 in

Dimension Y

 N/A 3.45 mm0.136 in

Dimension Z

 N/A 2.67 mm0.105 in
