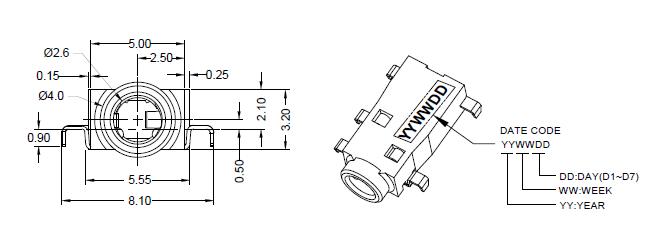

Audio Jack 2.5 mm, Mid Mount, Tape and Reel

Unit of Measure

Specifications

Manufacturer Stock

 N/A {0}

Brands

 N/A Kycon

Manufacturer

 N/A Kycon, Inc.

Series

 N/A STX

Size

 N/A 2.5 mm

Number of Poles

 N/A 4

Number of Pins

 N/A 5

Color

 N/A Black

Industry Standards

 N/A Canadian Standards Association (CSA®) US File No. LR78160 Restriction of Hazardous Substances (RoHS)

Material and Finish

Housing Material

 N/A High Temperature, Thermoplastic, UL 94V-0 Rated, Black Color

Contact Material

 N/A Copper Alloy, Gold Plated

Electrical Characteristics

Insulation Resistance at 250 Volt (V) Direct Current (DC) Voltage

 N/A More than 100 MΩ

Maximum Contact Resistance

 N/A 50 mΩ

Root Mean Square (RMS) Dielectric Withstanding Alternating Current (AC) Voltage for 1 Minute

 N/A 250 V

Operating Temperature

 N/A -25 to +85 ºC

Mechanical Characteristics

Insertion Force

 N/A 0.4 to 3.0 kg

Withdrawal Force

 N/A 0.4 to 3.0 kg

Minimum Mating Durability

 N/A 5000 cycles
